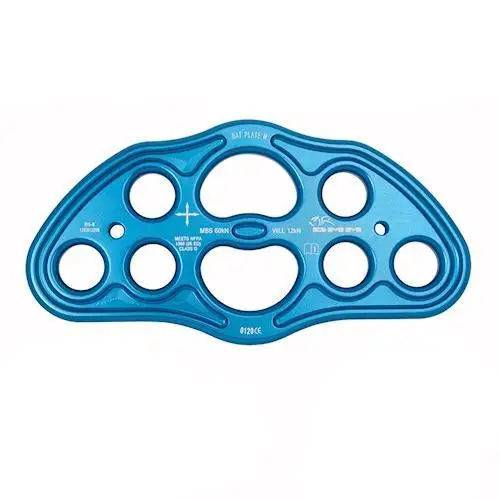

The DMM range of Rigging Plates raises the bar in design, performance and strength. Heat-treated CNC machined from aluminium alloy makes the DMM Bat rigging plates super strong, light and incredibly versatile. The ‘Bat’ shape minimises height loss in complex rigging scenarios, and the generous radii allow direct attachment of textiles and ropes as well as connectors.

Features

• 19mm holes for connector compatibility
• Textile friendly surfaces.
• High strength to weight ratio.

• Individual serial number.

• CNC machined from high strength, heat-treated, 7075 T6 Aluminium alloy.
• Colour anodised to EN12373-1:2001 Class 10E1 for corrosion protection and identification.
• CE certified to EN795(b):1996.
• CE certified to EN354:2002.
• Certified to NFPA 1983 (06Ed) Class G

Specifications

SIZE	MBS	WLL	DIMENSIONS	WEIGHT
XS	36kN	7kN	62x62x8mm	37g
S	60kN	12kN	129x95x10mm	159g
M	60kN	12kN	189x97x10mm	247g
L	60kN	12kN	249x99x10mm	332g
