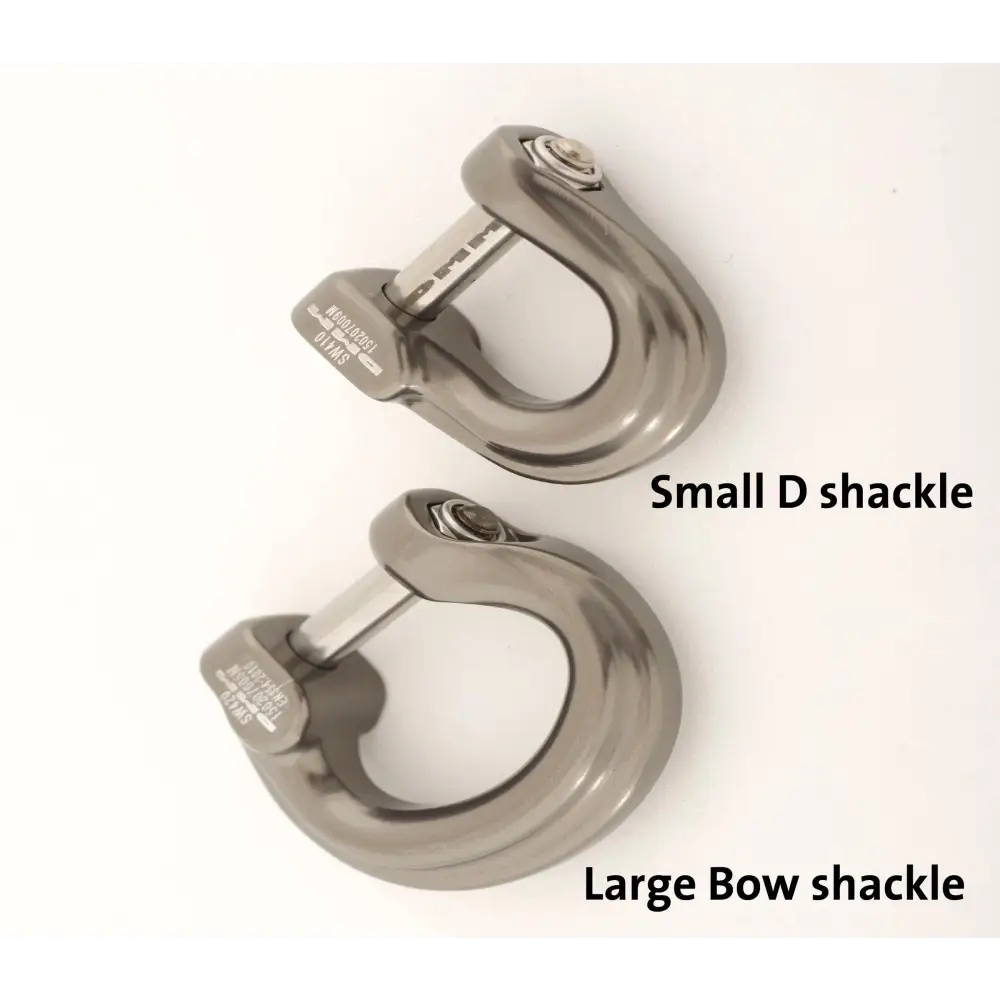

A new compact swivel range from DMM which is designed to optimise modern configurations, this range offers torsional tolerance in miniature form. There are two different shackles available the D shape or bow shackle, these can be interchanged to offer numerous different configurations.

Available in three different configurations

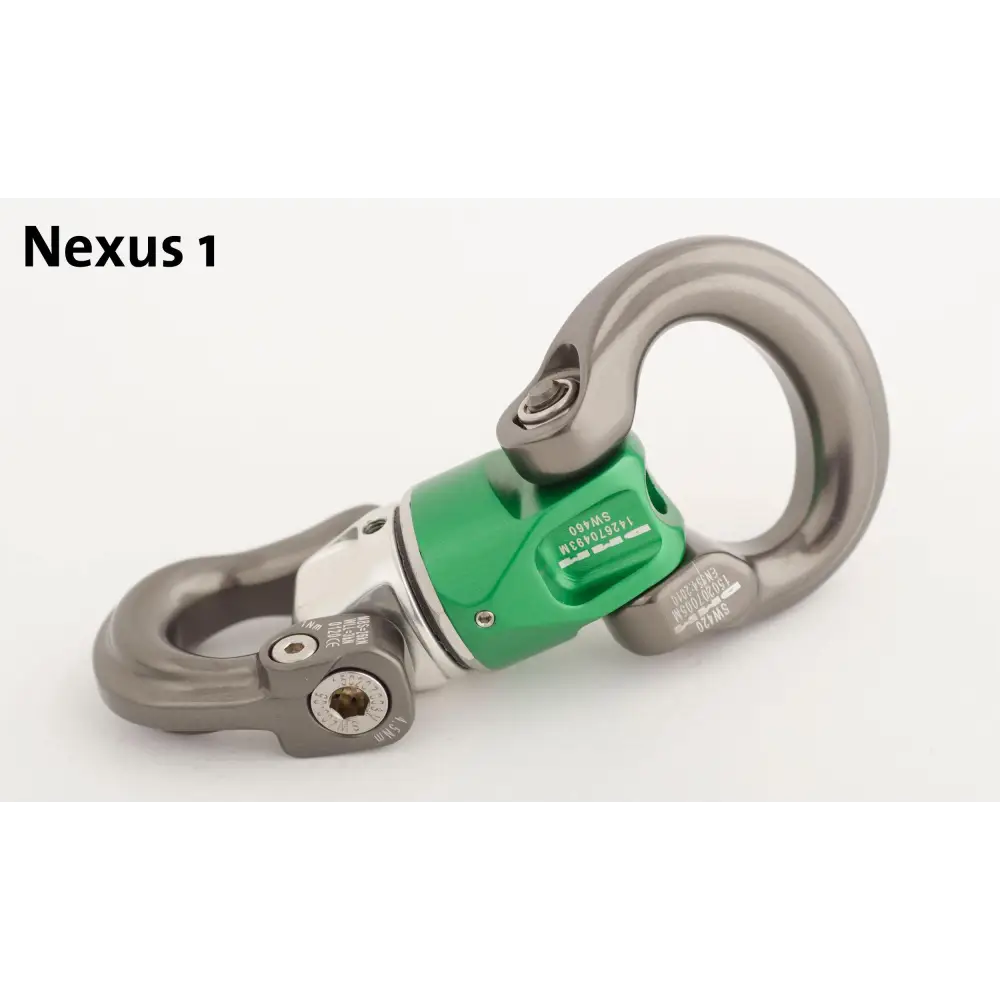

• Nexus 1 comes with 1 D shackle and 1 bow shackle

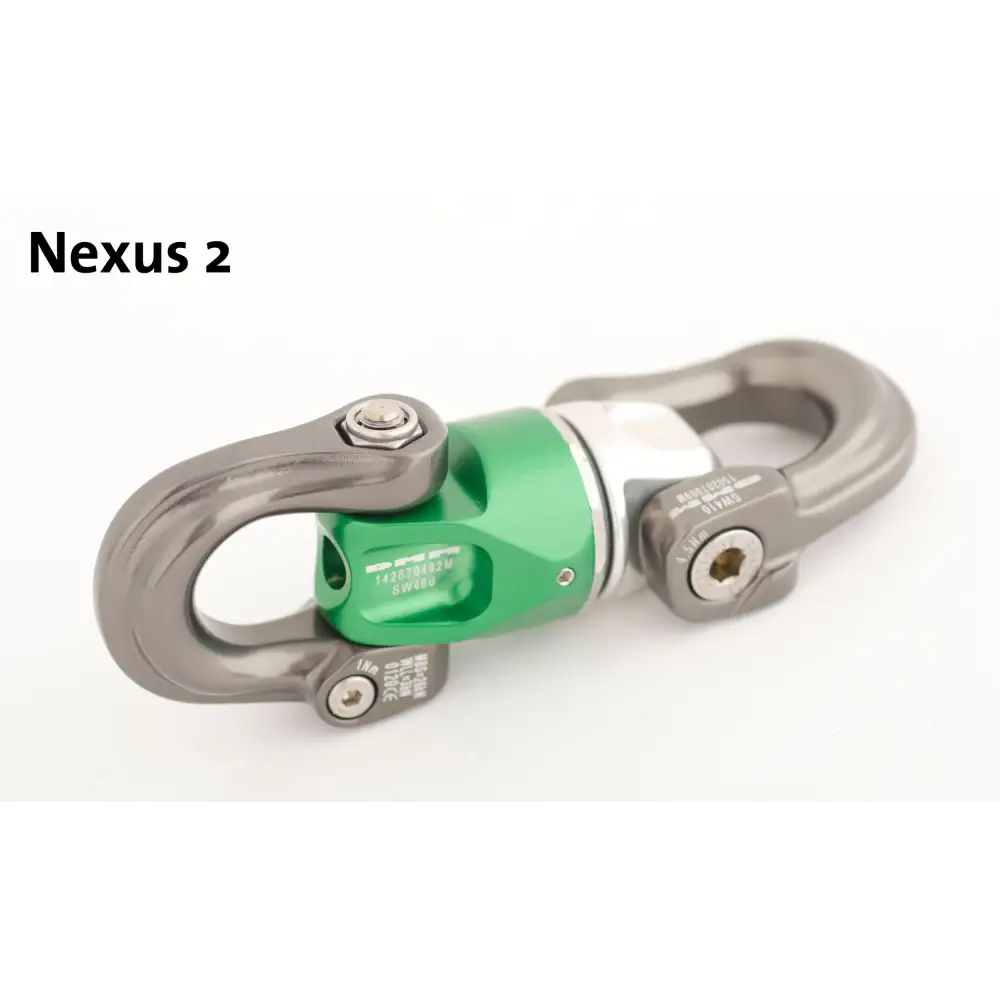

• Nexus 2 comes with 2 D shackles

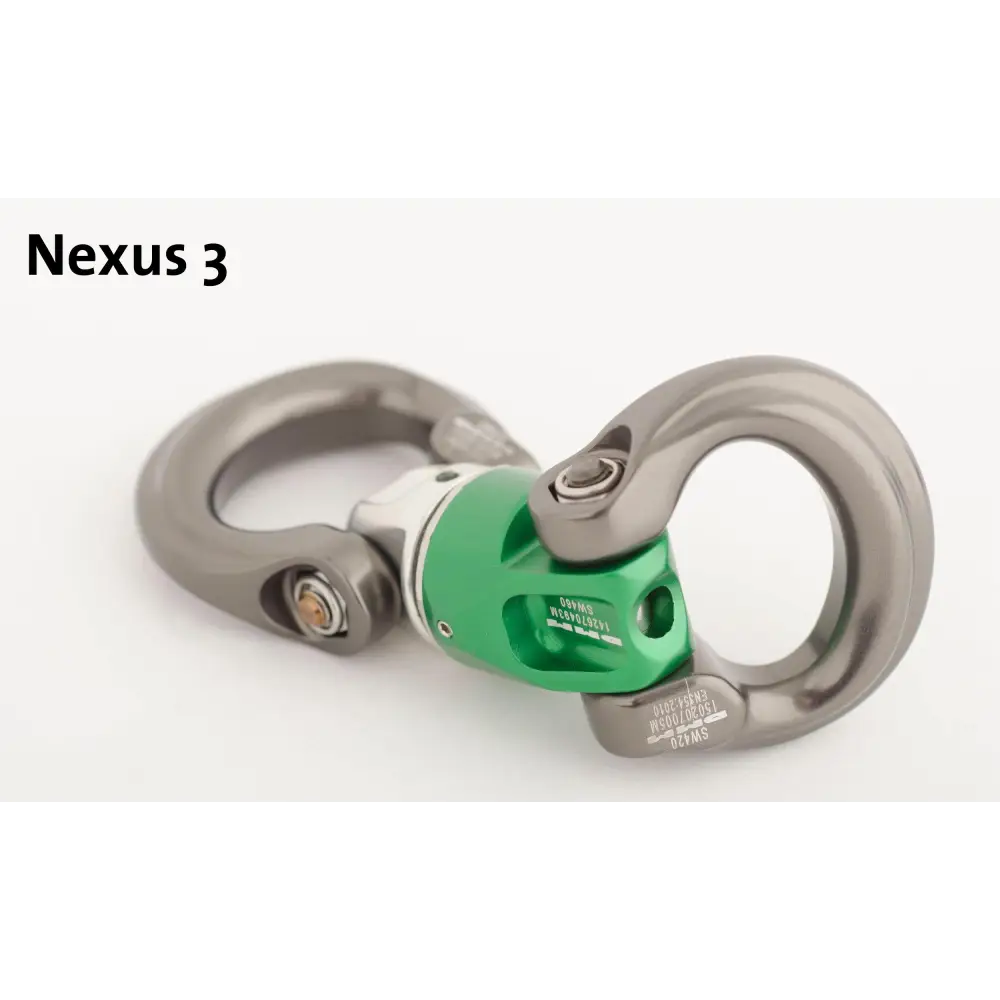

• Nexus 3 comes with 2 bow shackles

Technical Specifications

• Hot forged and CNC’d from aluminium
• High tensile stainless steel axles
• Roller Thrust Bearing
• MBS - 26kN
• WLL - 3kN
• CE Certified
• Shackle requires 4mm and 2mm Allen keys

Dimensions

• Nexus 1 - 102 x 48 27mm, weight - 99g
• Nexus 2 - 97 x 36 x 27mm, weight - 92g
• Nexus 3 - 108 x 48 x 27mm, weight - 108g
