At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85 kN (19000 lbf) MBS and a WLL of 17kN (3800 lbf).

The Pulley plates are made from hot forged Aluminium and it is this manufacturing process that allows such a compact pulley to boast such great strength and dynamic load-bearing capacity.

• Working Line (Grey Sheave):
• 13mm (1/2") - 38kN (8500 lbf)
• Topping Strop (Red Sheave):
• 16mm (5/8") - 74kN (16650 lbf)

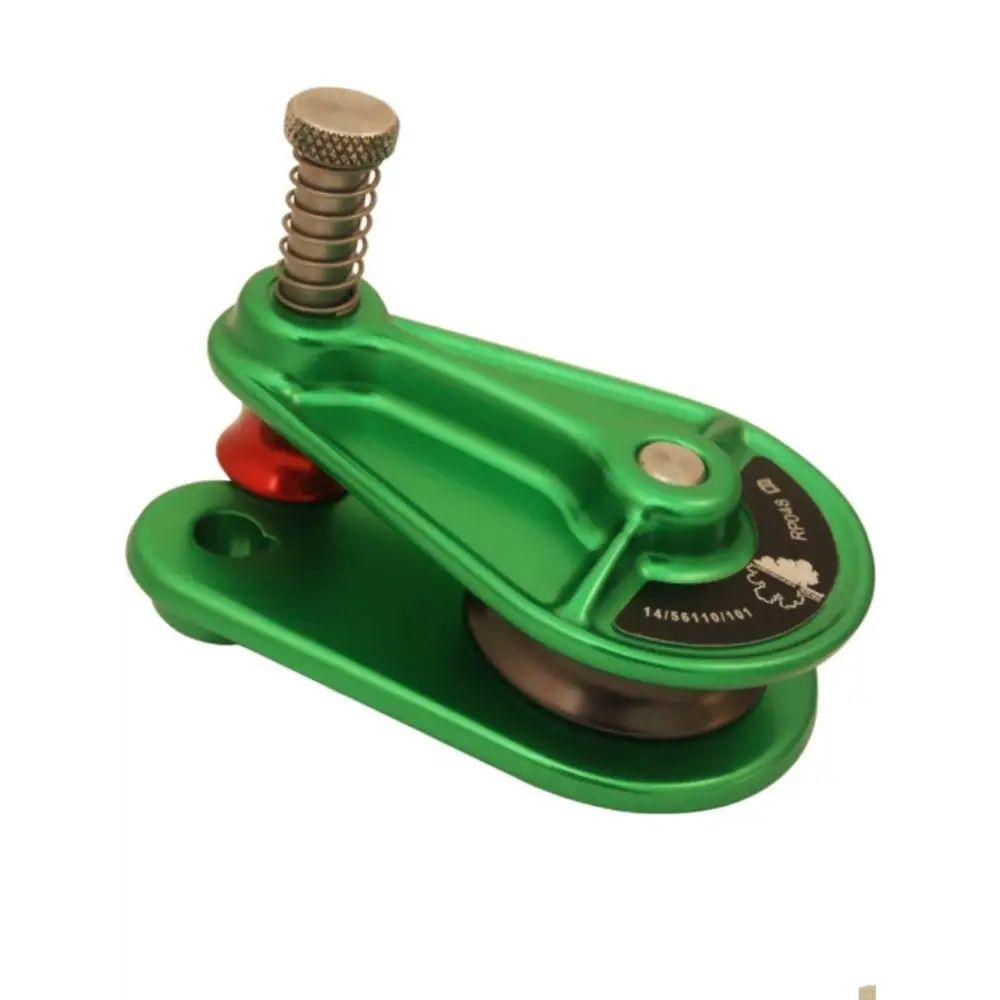

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.

Technical Information

(MBS) Minimum Breaking Strength (kN)85
(MBS) Minimum Breaking Strength (lbf)19000
Pulley wheel colour grey
Anchor wheel coloured
Wheel materialAluminium
Body finish Anodized
ColourGreen/grey
Weight (grams)490
Weight (ounces)16
Height (mm)125
Height (inches)5
Width (mm)76
Width (inches)3

Approved Standards

CE Approved

Notes

Individually Serial Numbered
