Rollclip Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

Features

Easier handling:-

• Sheave mounted on sealed ball bearings for excellent efficiency

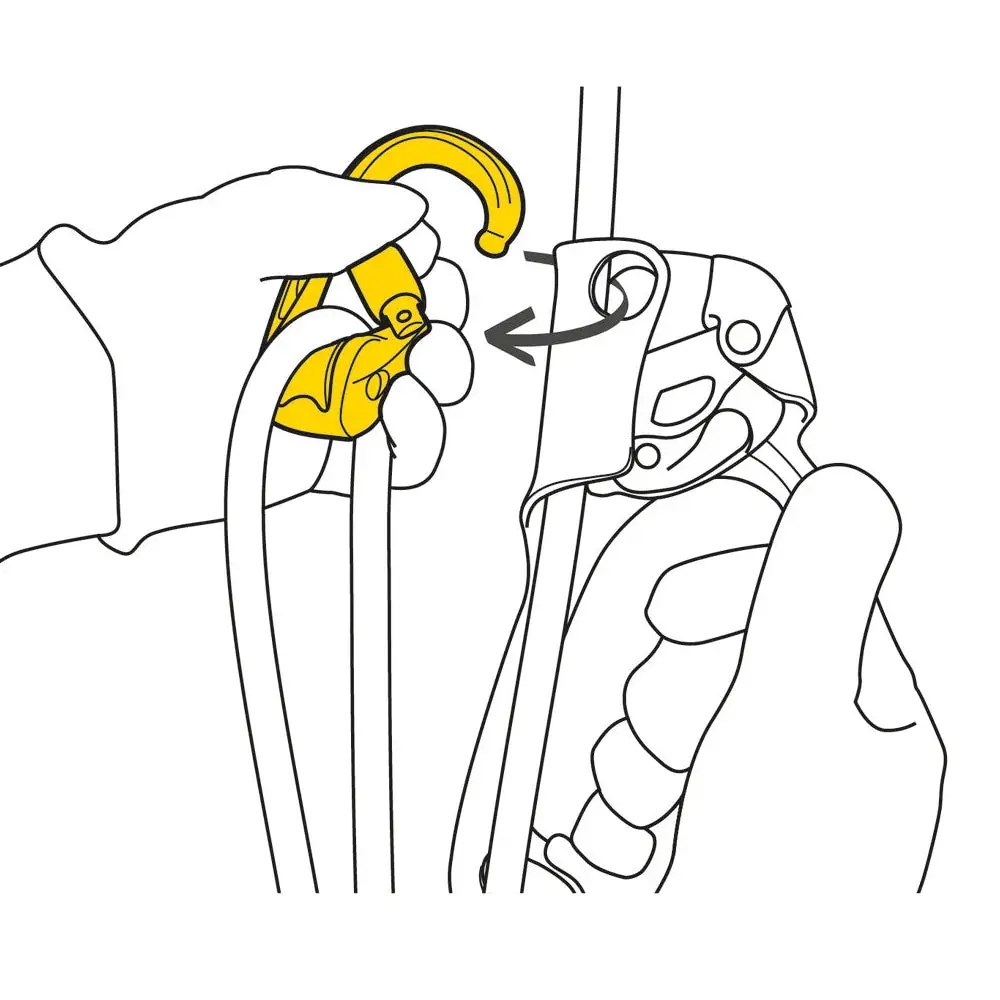

• Gate opening on the non-pulley side, to facilitate installation on devices
• Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

H cross-section of carabiner: -

• Ensures an improved strength-to-weight ratio
• Protects markings from abrasion

Two locking systems available: -

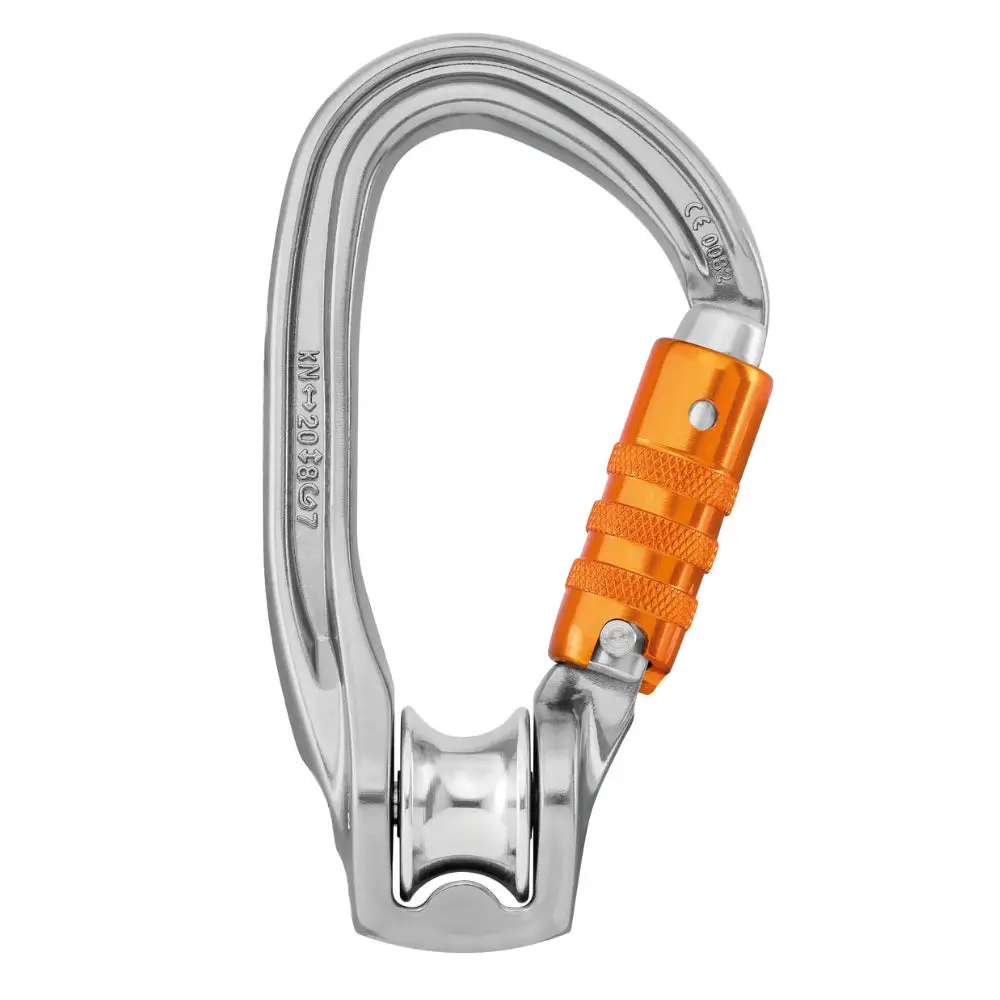

• TRIACT-LOCK: automatic locking with triple-action gate opening

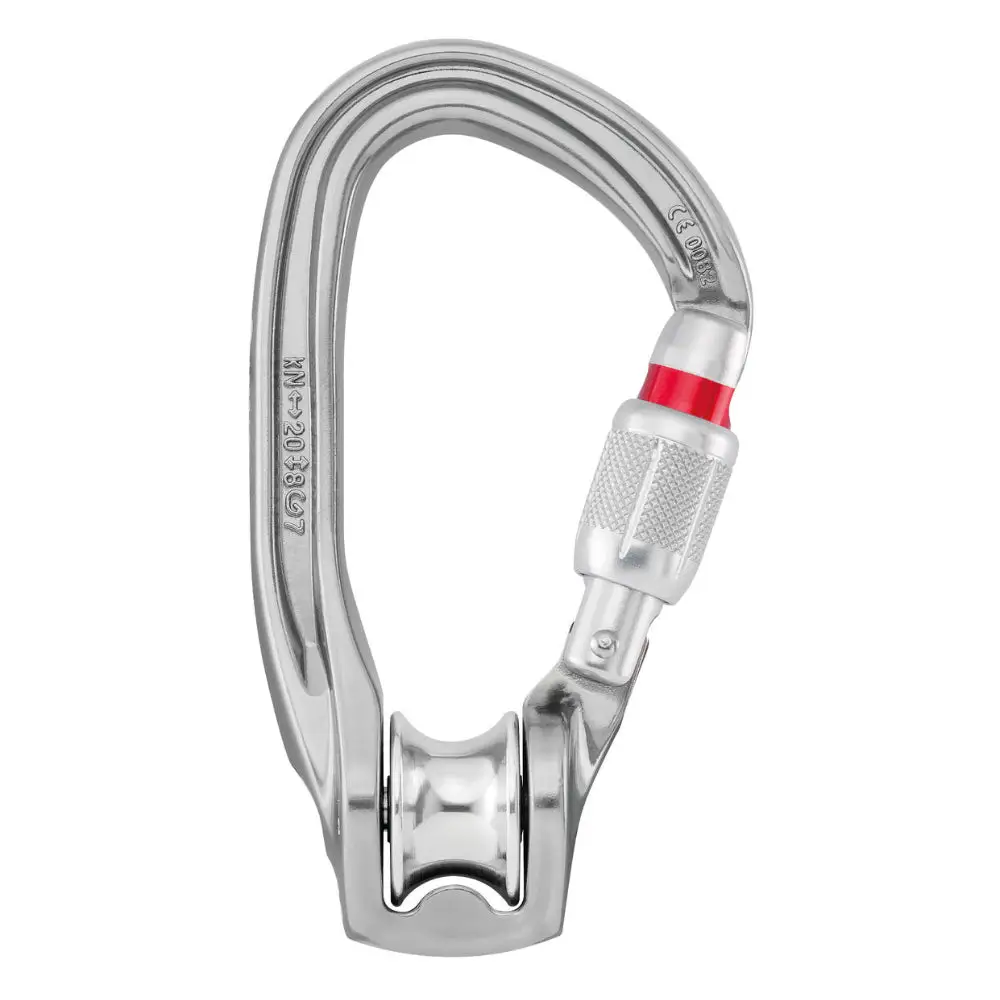

• SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

• Material(s): aluminium
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85 %
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN
• CE EN 362, EN 12278, EAC
