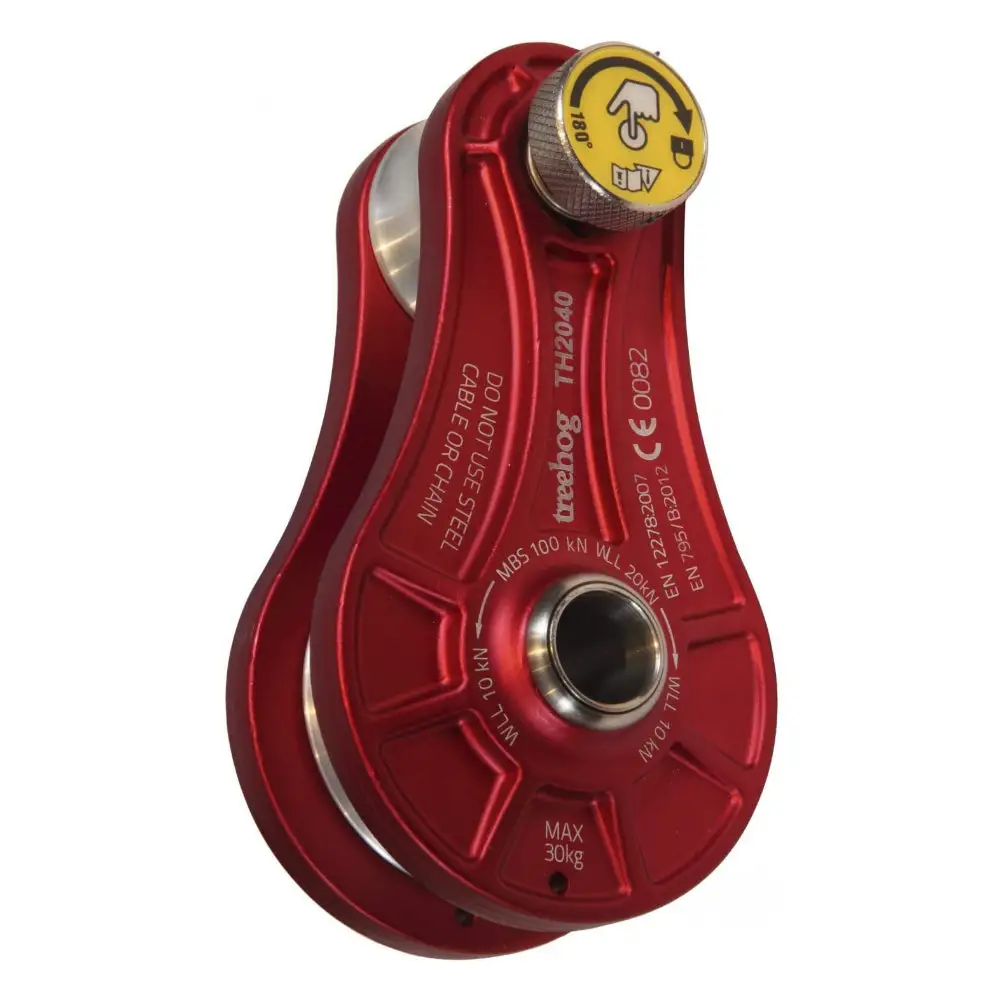

Treehog 100kN Pulley Block _ Quick Release (Red)
A heavy-duty pulley for medium to large rigging jobs. With a minimum breaking strength of 100kN and a safe working load of 20kN, the Treehog block pulley is up to most tree rigging jobs when required.
This heavy-duty impact block is ideal for most if not all rigging jobs with a massive 100kN breaking strength. It can be attached midline with side swing plates allowing for easy installation. Made with forged aluminium, designed to absorb impact upon shock loading. A hollow bore allows the user to add a speed line for quick and safe rigging or it can be attached as a floating anchor.
The quick-release version allows you to quickly open the block to insert the rope with a 1/2 turn thumbscrew closure.
The Screw-Lock version is a standard thumb screw operation to close the plates.
Specifications
- Forged alloy construction
- Stainless steel bearings
- Max rope diameter - 18mm
- Hollow large roller with 20mm dia bore
- MBS - 100kN
- SWL - 20kN
- Pulley weight - 1400g
Conforms to:
- EN 795:2012 Class B 7
- EN12278:2007
