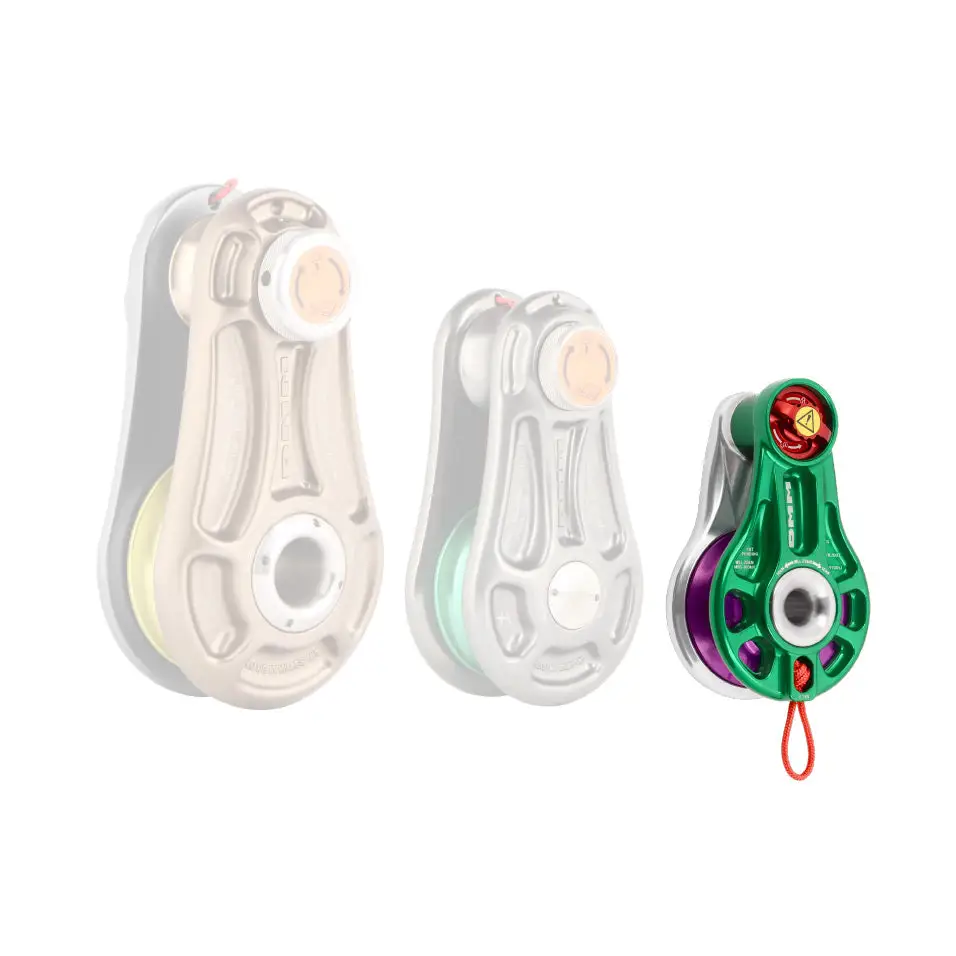

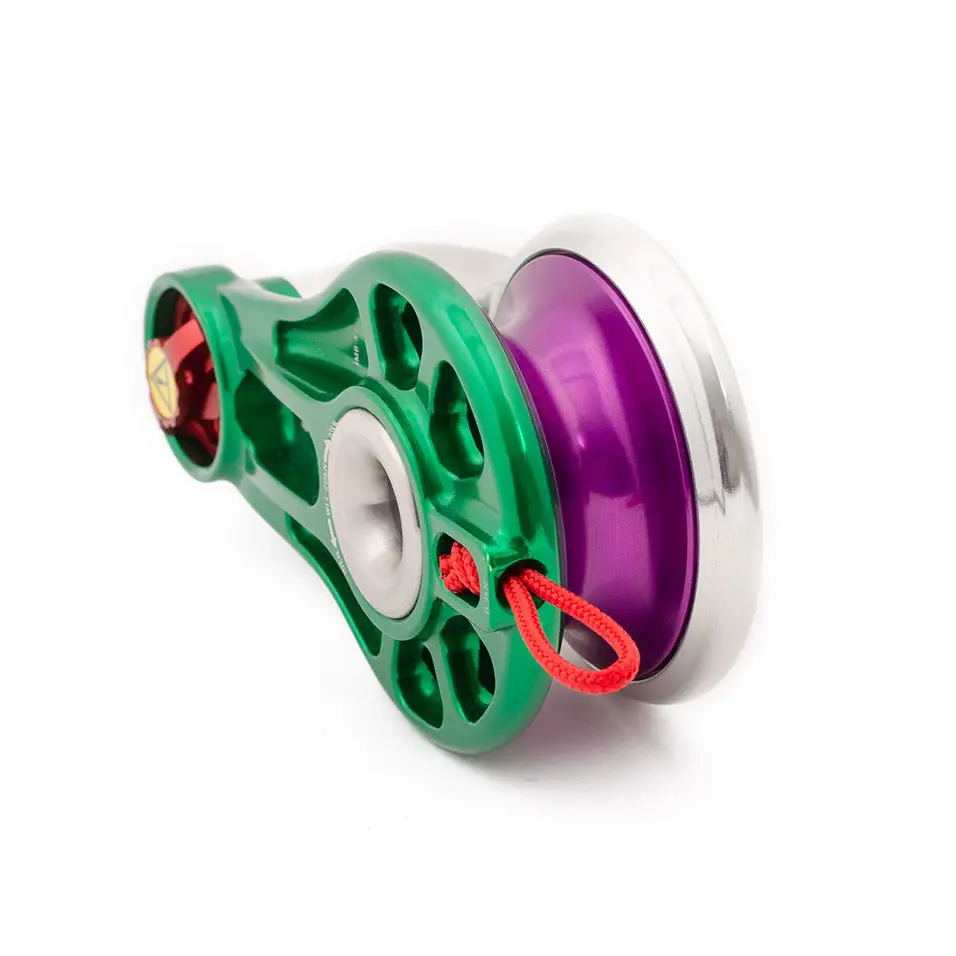

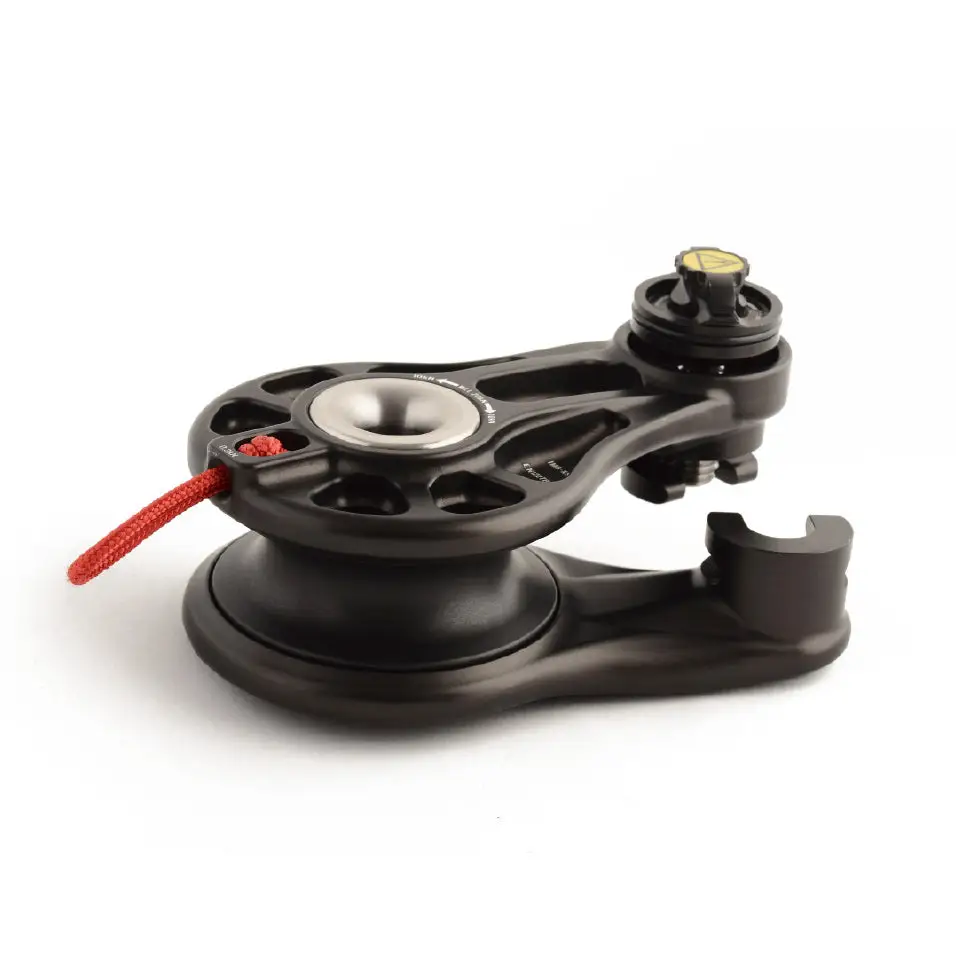

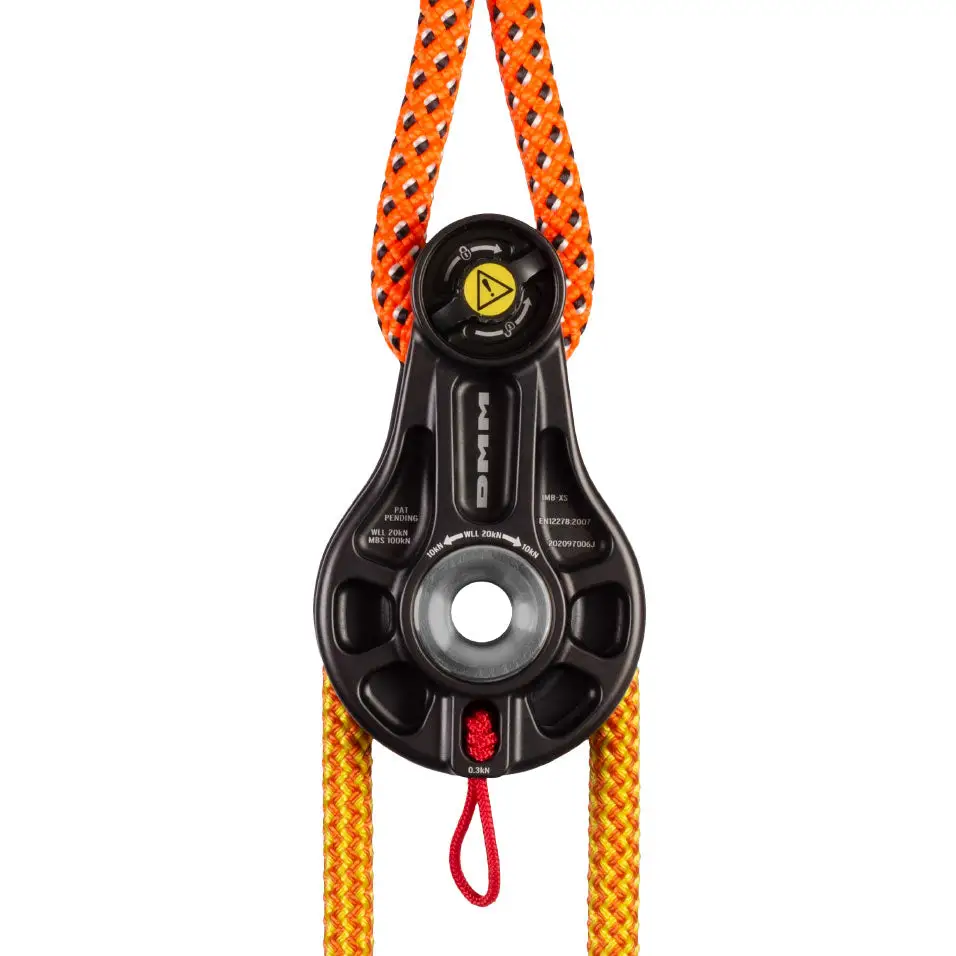

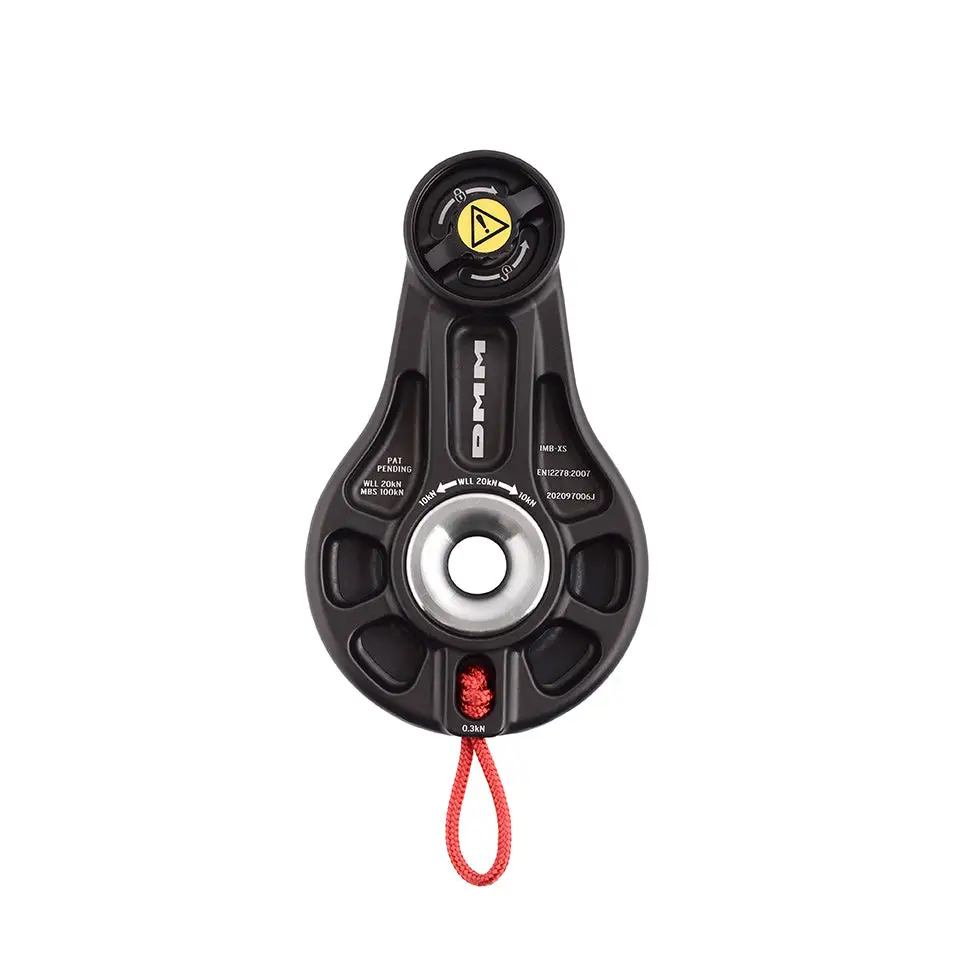

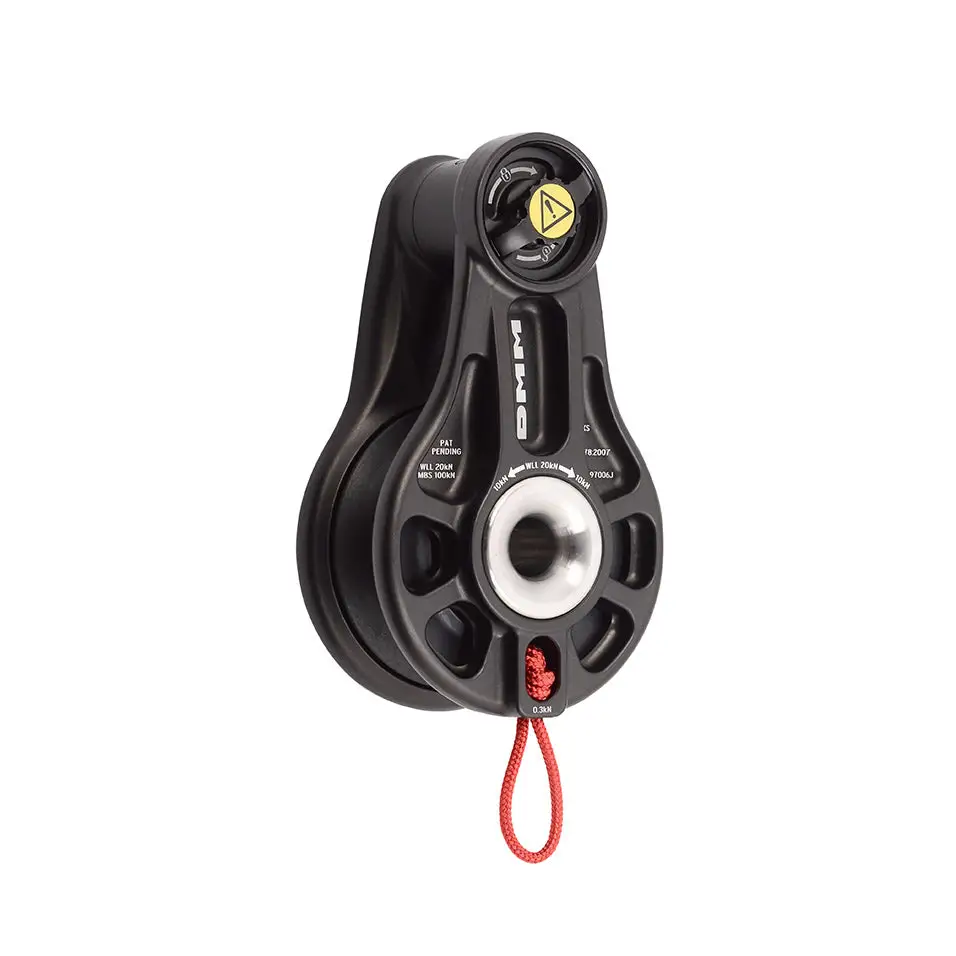

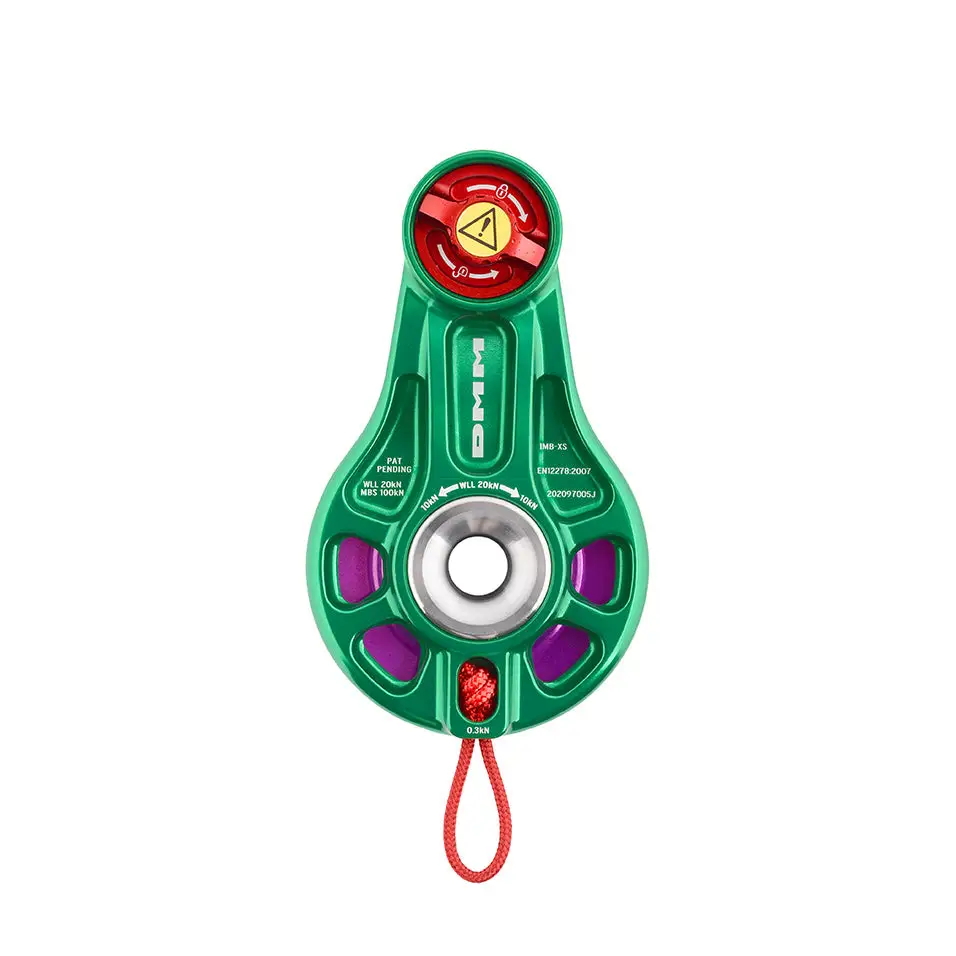

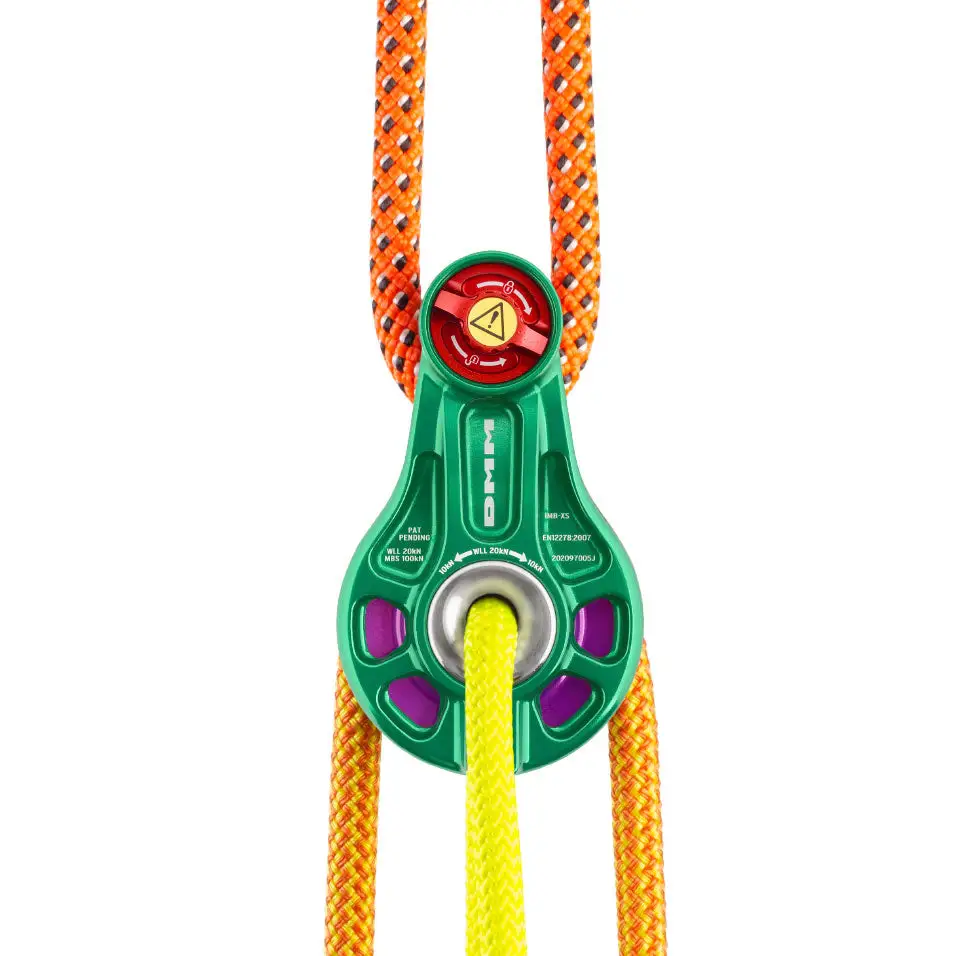

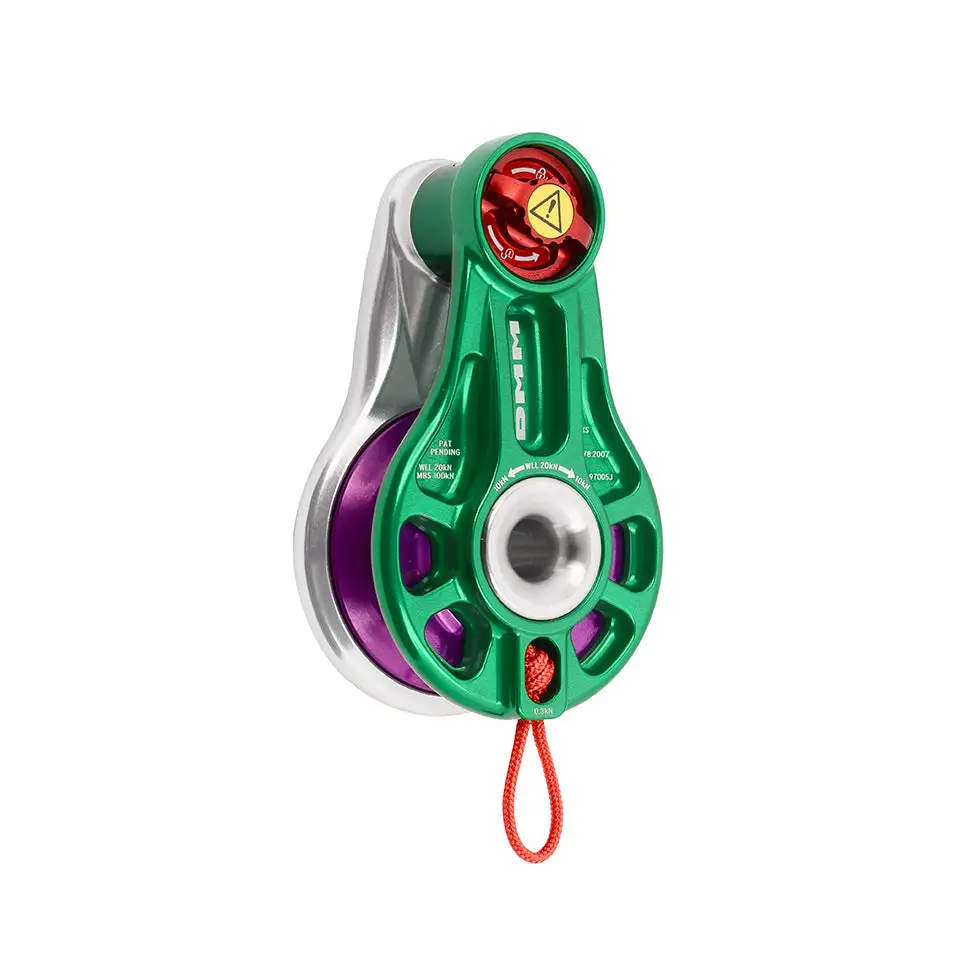

DMM Impact Block - XS
From its unique and doubly secure interlocking anchor bollard to the highly efficient oversized ball bearings, this is a block with a difference. Designed to combine lightweight and compact with high performance, the DMM Impact Block XS will become your best friend for redirect rigging, winching and snatching stem wood. In addition to highly evolved fairlead flares, the sheave is integrated with the side plates to ensure seamless transitions for your rigging line, while the all-new hollow axle design facilitates complex rigging configurations and allows for maintenance such as servicing of the bearings or replacement of the sheave. Validated for long term use in the toughest of environments with the most demanding of operators, robustness and resilience are already proven.
Features
- Compact, lightweight and highly efficient

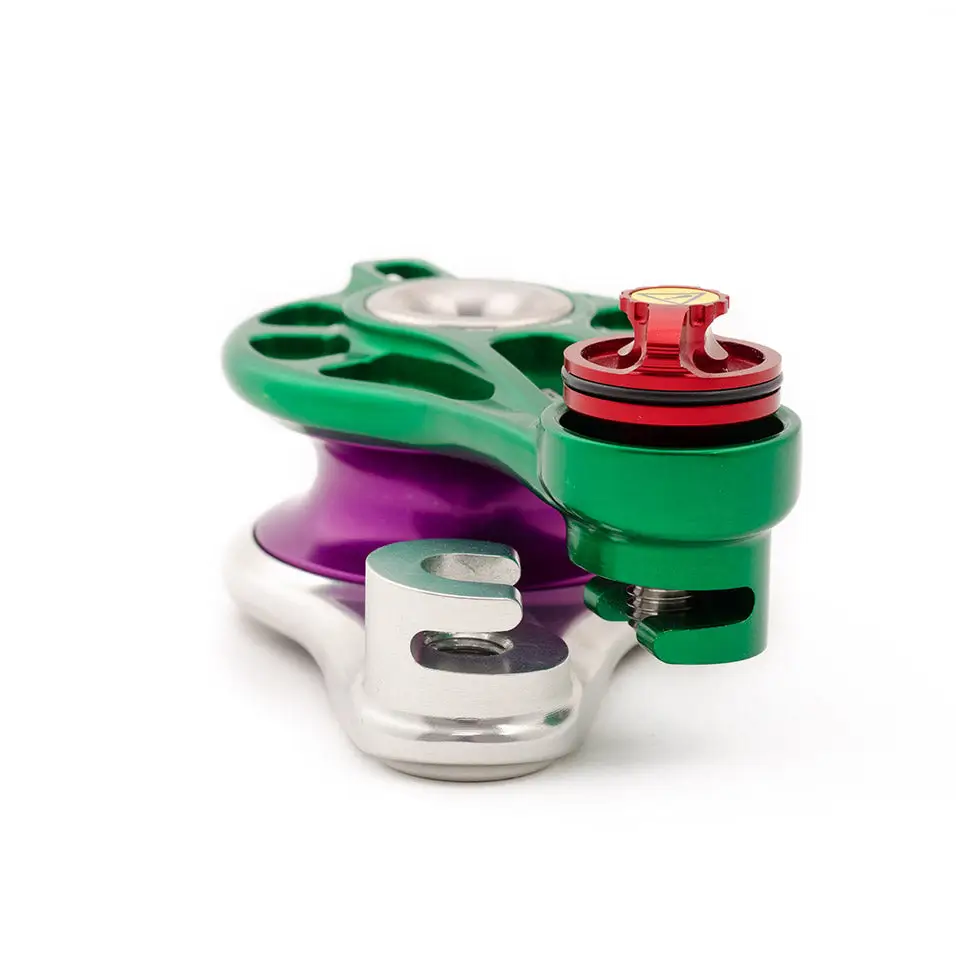

- Double security at the anchor bollard - interlocking bollard features and threaded axle
- Rounded edges to cheek plates maintain low rope abrasion when the rope is fed āunfairā
- Large sheave diameter and efficient bearings make this block ideal for both everyday rigging and winch operations (e.g. with capstan winches)

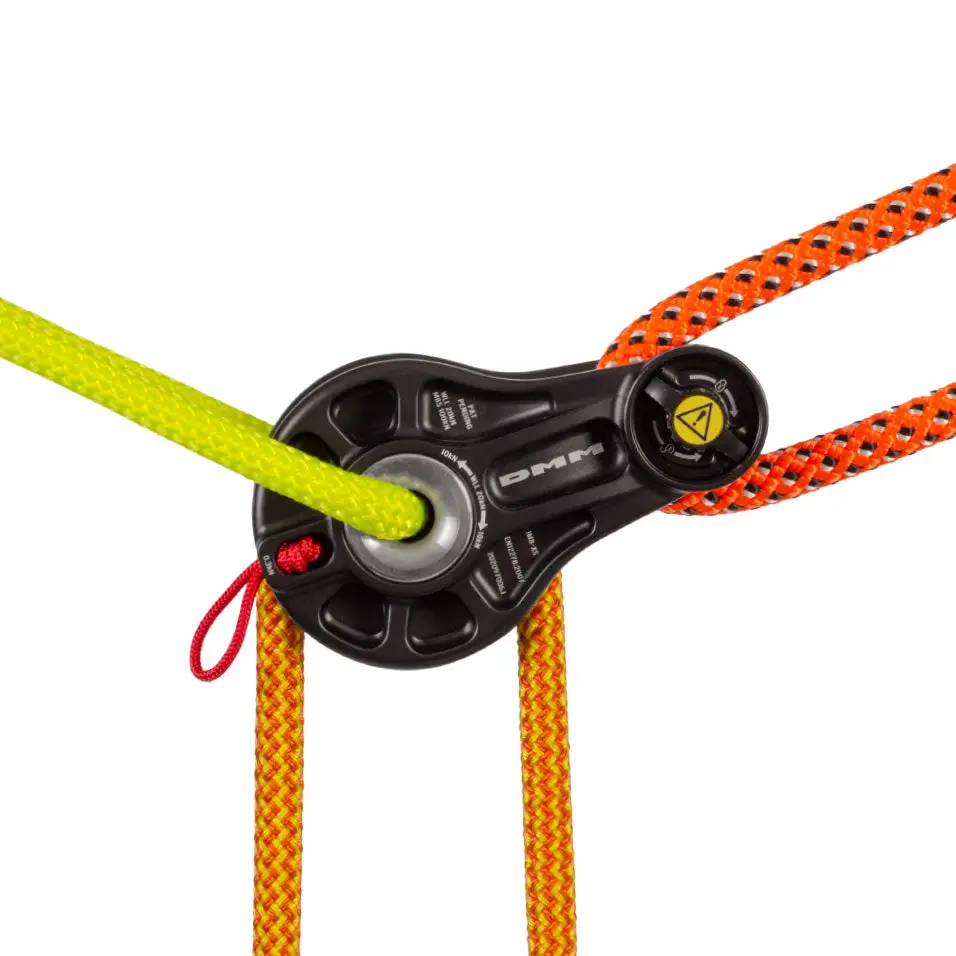

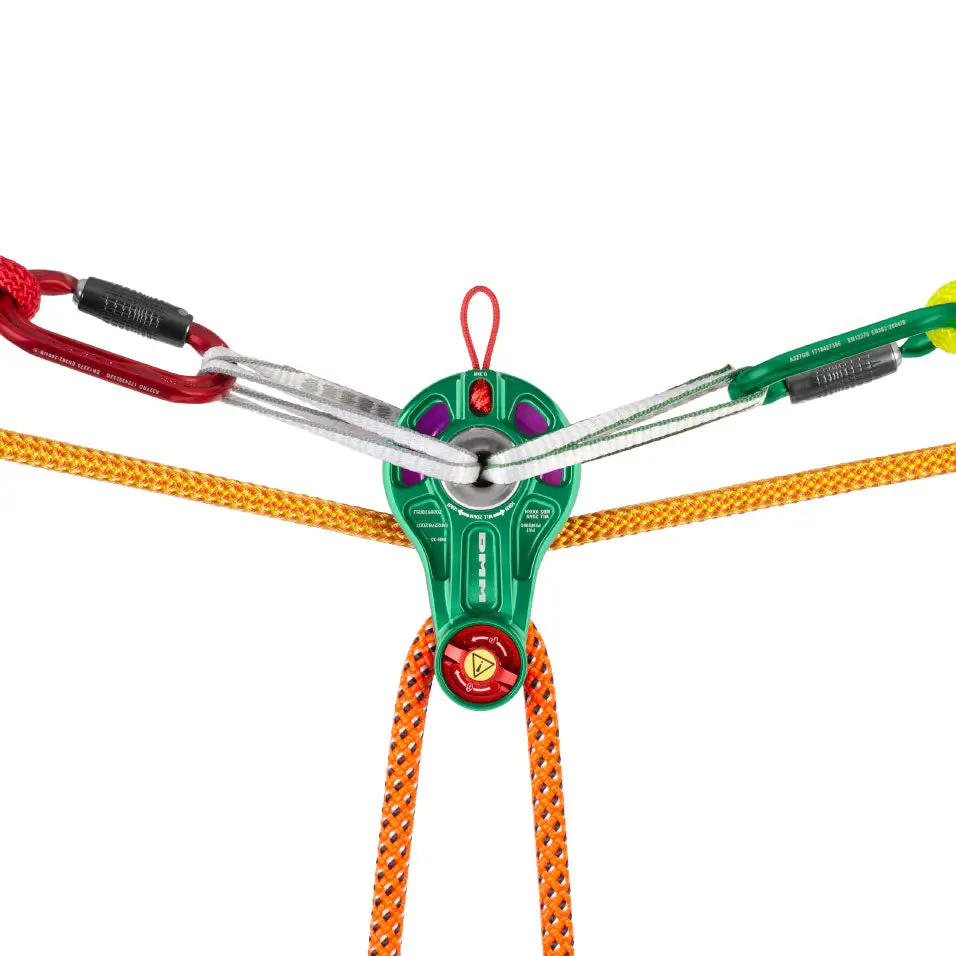

- Hollow axle facilitates configurations beyond the previous standard
- Hauling loop simplifies hauling, transfer and storage
- Highly evolved fairleads flairs help maintain efficiency even in suboptimal setups
- Serviceable by manufacturer e.g. bearing replacement
- Patents Pending
- Made in Wales, UK
- Available in green or matt grey
Performance
- Minimum breaking strength [MBS]: 100kN
- Working Load Limit [WLL]: 20 kN
- Maximum rope diameter: 16 mm
- Weight: 780g
- Dimensions - 140 x 82 x 60mm
Suggested Areas of Application
- Tree care ā dismantling operations
- Forestry ā winching operations
- Rescue
Technical Specifications
- Conformance - EN12278:2007
- Hot forged cheek plates in 6082-T6 aluminium for high strength to weight ratio
- CNC machined from 6082-T6
- Anodised to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
- Stainless Steel 303 hollow spindle (IMB-L only)
- Stainless Steel 303 anchor pin (IMB-S), or 174 anchor pin (IMB-L)
- Efficient and robust Bronze self-lubricating oilite bushings
- 6082-T6 aluminium alloy sheaves
