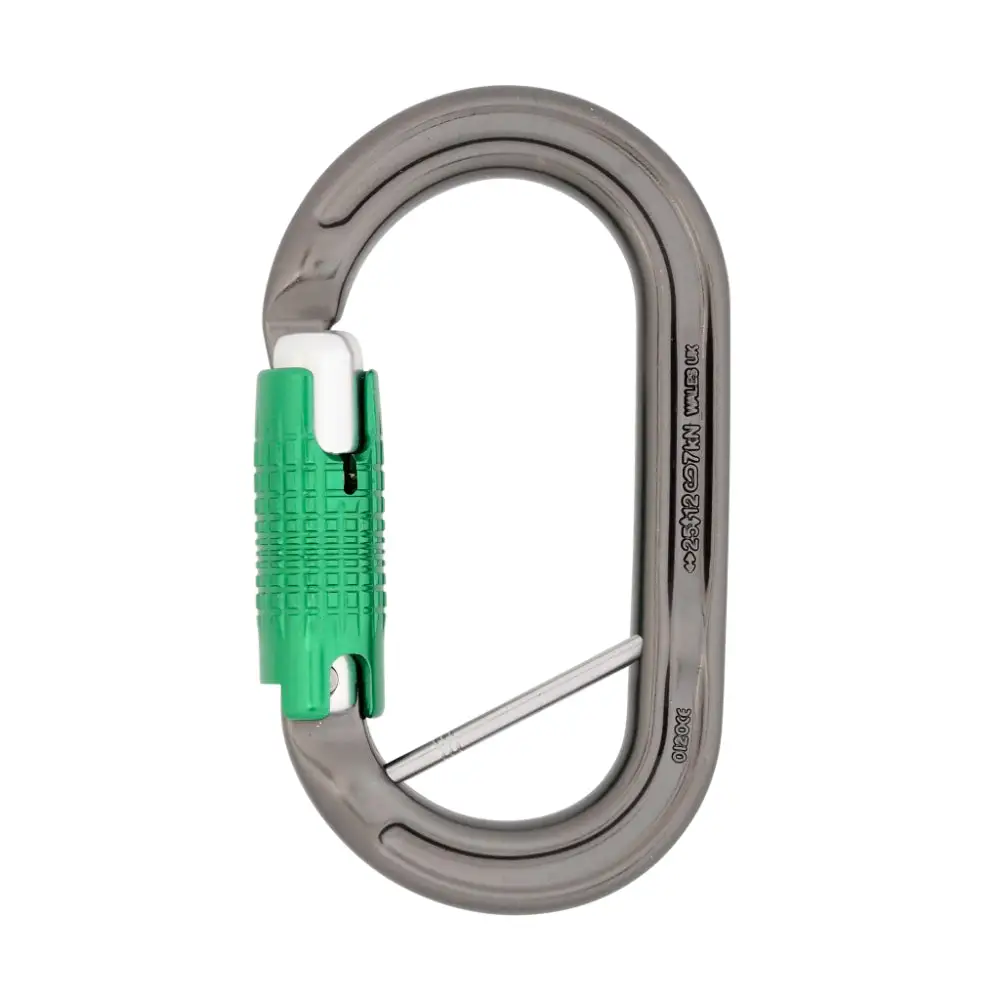

This DMM Oval Locksafe Captive in Titanium is a triple-action design pairs perfectly with DMM's Triple Attachment and Pinto pulley options.

Captive bar option for security

Many of our connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.

Features

• Locksafe - three-way locking system.
• I-Beam section for increased strength to weight ratio.
• Recommended for use with pulleys and as a general connector.
• CNC machined from 7075 T6 aluminium for strength, durability and lightness.
• Surface finish facilitates smooth rope operation.
• Sealed for corrosion protection.
• Recommended for arborist use
• Individually marked for traceability.

Specifications

• Dimensions - 63mm x 109mm
• MBS (gate closed) - 25kN
• MBS (minor axis) - 12kN
• MBS (gate open) - 7kN
• Gate opening - 19mm
• Weight - 76g

The classic triple-action, locking mechanism.

The Locksafe is almost as simple to use as the Kwiklock, requiring just one extra push-up action of the barrel before the twist, but when locked gives even better protection from accidental opening. This is especially important in situations requiring complex, rope-running systems. A rope under tension may run transversely over other locking mechanisms exposing them to the risk of unlocking. The addition of the third required action dramatically reduces the likelihood of the same rope opening the Locksafe.

• Top Tip: Keep all Locksafes clean and properly maintained to increase longevity in use, clean with warm soapy water.
