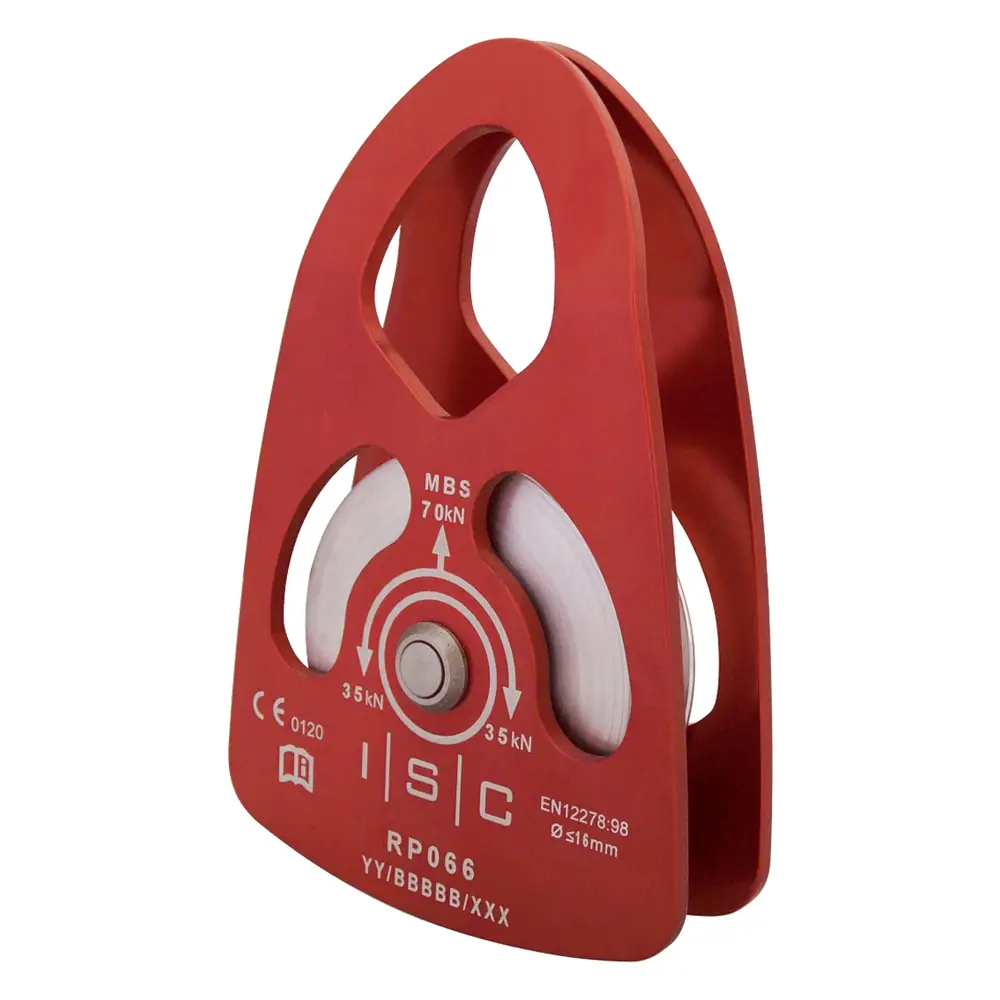

ISC Large Swing Cheek Pulley
Single Pulley for 16mm ropes, it has a minimum breaking strength of approximately 7 ton and working load limit of 3.5 ton.
Pulleys in our Heavy-duty Prussik range have tamper-proof Rivets, in compliance with CE EN12278 (2007) & NFPA (1983)*
These Pulleys are available in Aluminium or Stainless Steel, with Bushings or Roller Bearings. Bushings are ideal for high loads at low speeds and Roller Bearings are ideal for low loads at high speeds.
USES
- Rigging
- Rescue
- Hauling
| Colour | Red |
|---|---|
| Diameter (mm) | 16 |
| Manufacturer | ISC |
| Application | Rigging |
| Material | Aluminium |
| Min Breaking Strength (kN) | 70 |
| Length (mm) | 156 |
| Width (mm) | 106 |
| Weight (g) | 463 |
| Standard | EN12278:98 |
| Finish | Anodised |
| Serial Number | Yes |
| Proof Tested | Yes |
| Cheek Action | Swing |
Approved Standards
- CE Approved
- Individually Serial Numbered
